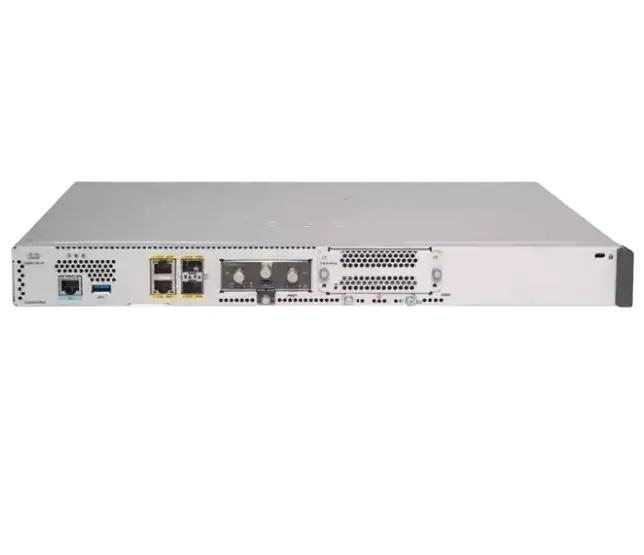

Wi-Fi 802.11b Standards and Protocols C8200-1N-4T Gigabit Ethernet Router with 2.4G Wi-Fi Transmission Rate of 1200 Mbps

Product Categories

Shanghai Apying Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

with modem function : Yes

standards and protocols : Wi-Fi 802.11ac, Wi-Fi 802.11n, Wi-Fi 802.11b, Wi-Fi 802.11g

wi-fi supported frequency : 2.4G & 5G

supports wds : Yes

supports wps : Yes

wi-fi transmission standard : 802.11b

wired transfer rate : 10/100/1000Mbps

2.4g wi-fi transmission rate : 1200 Mbps

encryption type : WPA2

private mold : Yes

products status : New

type : With 5G Sim Card

application : 4g

function : SDK available

lan ports : 16

Antennas : 2 external antennas

wan ports : 1 x10/100/1000Mbps

brand name : /

place of origin : Shanghai, China

5g wi-fi transmission rate : 1000Mbps

Size : Customized Size

Color : Customizable

Suitable for : Workstation, Laptop, Desktop

Price : CN¥2,122.74/pieces 1-1 pieces

Contact Now

Product Description

Specification

Description	C8200 1RU w/ 1 NIM slot and 4x 1 Gigabit Ethernet WAN ports
Multicore processors	Intel x86 CPU with 8 GB memory default
Embedded IPsec VPN hardware acceleration	up to 1 Gbps IPsec traffic
SD-WAN overlay tunnels scale	2500
Integrated Gigabit Ethernet ports	4 built-in Ethernet WAN ports 2 SFP Ethernet ports, 2 RJ45 ports
Flash memory support	8-GB flash
Power supply	AC power supply
Modularity and form factor	1-Rack Unit (1RU) form factor Supports NIM and Pluggable Interface Module (PIM) slots
1G port density	4
Slots	1 NIM 1 PIM
DRAM	8 GB
Storage (M.2 SSD) default	16 GB
IPv4 forwarding throughput (1400 bytes)	Up to 3.8 Gbps
IPsec throughput (1400 bytes, clear text**)	Up to 1 Gbps
Number of IPsec static virtual tunnel interface (SVTI) tunnels	2500
Number of access control lists (ACLs) per system	4000
Number of IPv4 access control entries (ACEs) per system	72,000
Number of IPv4 routes	1.6M with default 8 GB, up to 4M with 32 GB
Number of IPv6 routes	1.5M with default 8 GB, up to 4M with 32 GB
Number of queues	16,000
Number of Network Address Translation (NAT) sessions	1.2M with default 8 GB, up to 2M with 32 GB
Number of firewall sessions	512,000
Number of Virtual Route Forwarding (VRF) instances	4000
